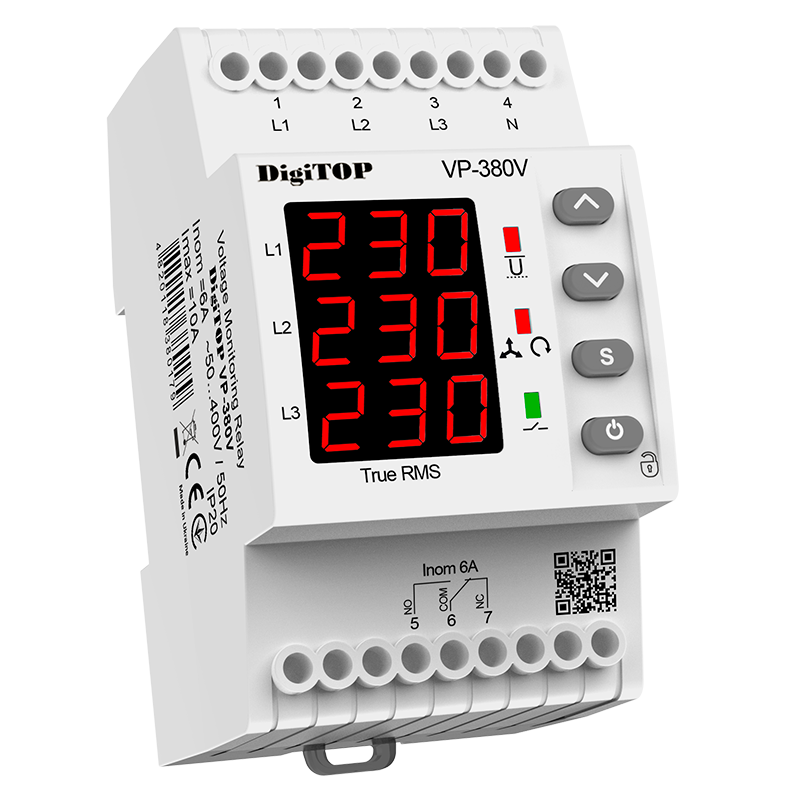

Three-phase voltage monitoring relay DigiTOP VP-380A – is designed to protect three-phase electrical equipment from unacceptable voltage changes, phase imbalance, phase loss, phase sequence control. The device prevents breakdowns and extends the life of electrical devices. The device is necessary for the protection of consumers in the presence of a three-phase input in production, cottage, house, etc.
€39.02 (€48.00 z VAT)
In stock
DigiTOP VP-380A three-phase voltage monitoring relay is designed to protect three-phase electrical equipment from unacceptable voltage changes, phase imbalance, phase loss, phase sequence control. The device prevents breakdowns and extends the life of electrical devices.
The device is necessary to protect consumers in the presence of a three-phase input in production, cottage, house, etc.
Programmable settings:
– Value of the lower and upper voltage activation limits
– Delayed switch-on time
– Value of permissible phase unbalance
– Phase rotation control
Three-phase
Rated load current: 3x6A
Maximum load current: 3x10A
Operating voltage: 50-400V AC
Mains operating frequency: 50Hz
Turn-off time: 0.02 sec.
Contact configuration: changeover contact (NO+NC)
Size: 3 modules on a DIN rail
| Weight | 48 g |
|---|
Trójfazowy
Znamionowy prąd obciążenia: 6A
Maksymalny prąd obciążenia: 10A
Mierzone napięcie: 50-400V
Czas wyłączenia dla górnej granicy: 0,02 sek.
Czas wyłączenia dla dolnej granicy, nie więcej niż 1 sek (120V-200V) 0.02 sek (<120V)
Dolna granica odcięcia dla napięcia: 120-200 (170*) V
Górna granica odcięcia dla napięcia: 210-270 (250*) V
Czas opóźnienia włączenia obciążenia: 5-600 (15*) s
Czas wyłączenia przy asymetrii faz: 20 s
Asymetria faz: 20-99 (50*)
Wielkość: 3 moduły
Montaż na szynie DIN
5 lat gwarancji
* – ustawienia fabryczne
