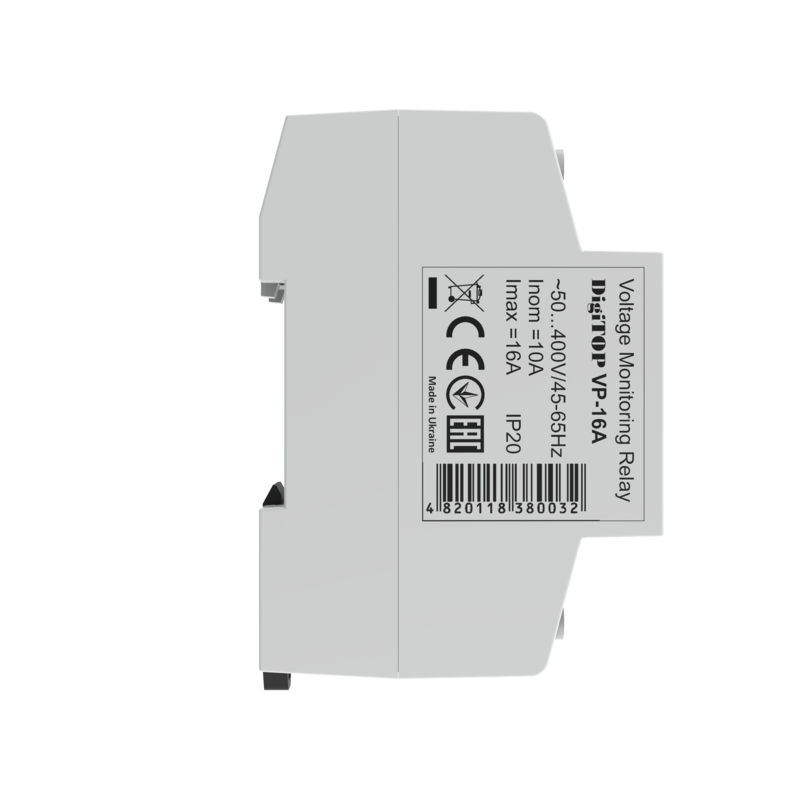

DigiTOP VP-16А voltage relay – is designed to protect electrical appliances and household equipment from unacceptable voltage fluctuations (home, apartment, office, etc.).
The user sets the required upper and lower voltage limits as well as the switch-on delay time.
€22.76 (€28.00 z VAT)
In stock
DigiTOP VP-16A voltage relay is designed to protect electrical appliances and household equipment from unacceptable voltage fluctuations. The device continuously analyzes the mains voltage and if it is exceeded, the connected devices are switched off, and the load is switched on automatically after the voltage returns to the set range. The user sets the required upper and lower voltage limits as well as the switch-on delay time.
A switch-on delay is required for electrical appliances that cannot tolerate short-term power cuts (refrigerators, air conditioners, etc.).
Programmable settings:
– Value of the lower and upper voltage tripping limits
– Load switch-on delay time
Single-phase
Rated load current: 10A
Maximum load current: 16A
Operating voltage: 50-400V AC
Network operating frequency: 50Hz
Shutdown time: 0.02 sec.
Contact configuration: changeover contact (NO+NC)
Size: 2 modules on DIN rail
| Weight | 21 g |
|---|
Single-phase
Rated load current: 10A
Maximum load current: 16A
Measured voltage: 50-400V
Off time for upper limit: 0.02 sec.
Cut-off time for lower limit, no more than 1 sec (120V-200V) 0.02 sec (<120V)
Lower cut-off limit for voltage: 120-200 (170*) V
Upper cut-off limit for voltage: 210-270 (250*) V
Load turn-on delay time: 5-600 (15*) s
Size: 2 modules
DIN rail mounting
5-year warranty
* – factory settings
