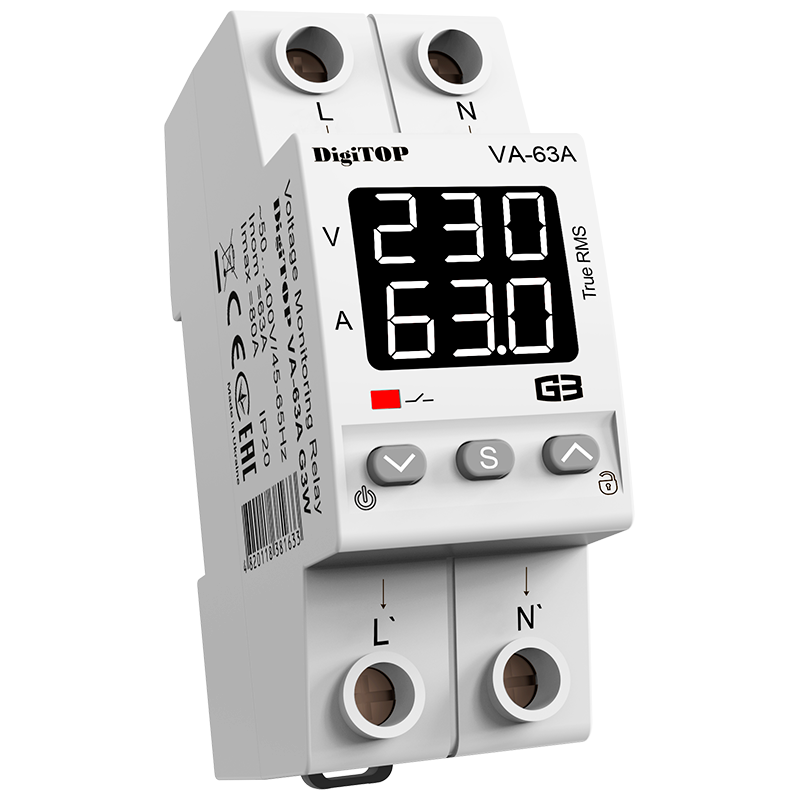

Voltage relay with current control DigiTOP VA-63A G3W is designed to protect electrical devices and household appliances from unacceptable voltage fluctuations in the network and from overload and short-circuit currents.
The device continuously analyzes the mains voltage and if it is exceeded, the connected devices are switched off, and the load is switched on automatically after the voltage returns to the set range. The user sets the required upper and lower voltage limits as well as the switch-on delay time.
€66.67 (€82.00 z VAT)
In stock
DigiTOP VA-63A G3W voltage relay with current control is designed to protect electrical appliances and household equipment from unacceptable voltage fluctuations. The device continuously analyzes the mains voltage and if it is exceeded, the connected devices are switched off, and the load is switched on automatically after the voltage returns to the set range. The user sets the required upper and lower voltage limits as well as the switch-on delay time.
A switch-on delay is required for electrical appliances that cannot tolerate short-term power cuts (refrigerators, air conditioners, etc.).

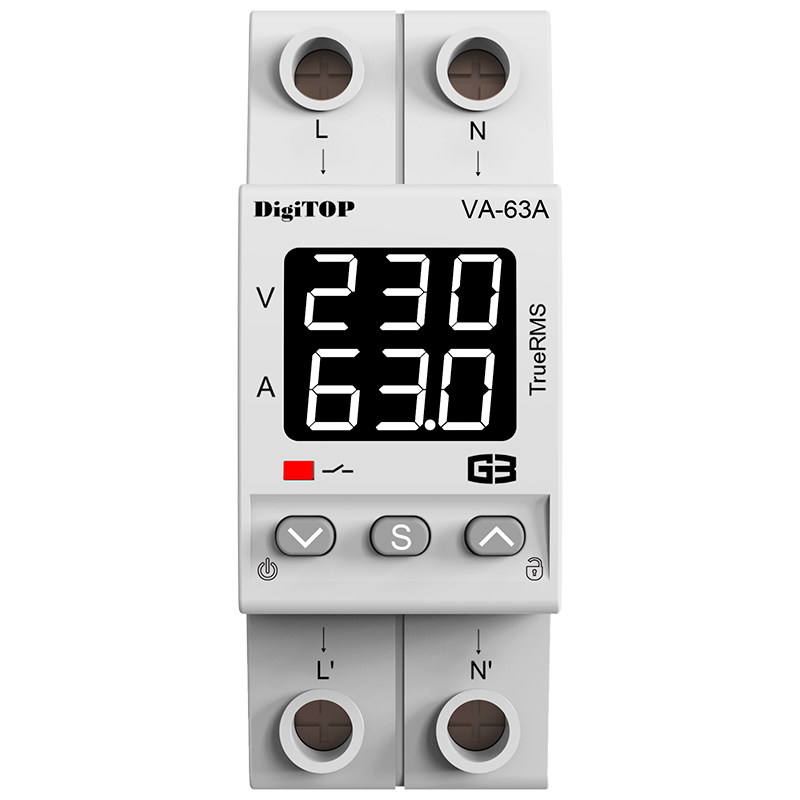

The device also monitors the current consumption of the connected load as there are a number of abnormal situations due to overcurrent: the most common is when the wiring becomes warm, the most critical is a “short circuit”. If the maximum current is exceeded, the load will be switched off immediately. The load is activated by a button on the front of the device.
What’s new compared to previous generations:
Programmable settings:
– Value of the lower and upper voltage tripping limits
– Load switch-on delay time
Single-phase
Rated load current: 63A
Maximum load current: 80A
Operating voltage: 50-400V AC
Network operating frequency: 45-65Hz
Shutdown time: 0.02 sec.
Size: 2 modules on DIN rail
| Weight | 82 g |
|---|
Single-phase
Rated load current: 63A
Maximum load current: 80A
Measured voltage: 50-400V
Network operating frequency: 45-65Hz
Switch-off time for the upper limit: 0.02 sec.
Off time for the lower limit, no more than 1 sec (120V-200V) 0.02 sec (<120V)
Lower cut-off limit for voltage: 120-200 (170 *) V
Voltage upper cut-off limit: 210-270 (250 *) V
Load turn-on delay time: 5-600 (15 *) s
Size: 2 modules
Mounting on a DIN rail
5-year warranty
* – factory settings
