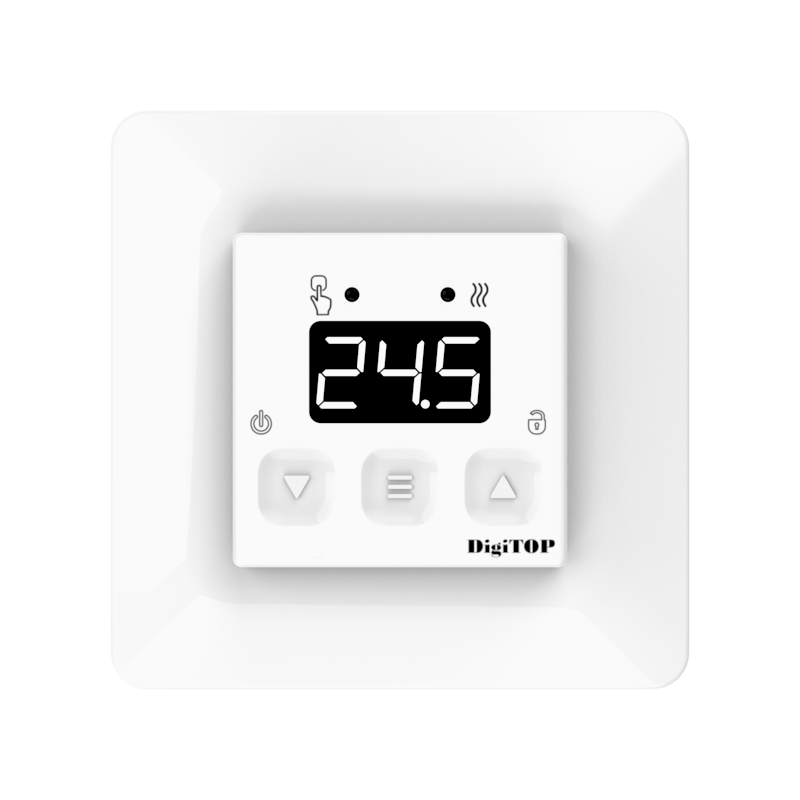

DigiTOP TS-1F thermoregulator

Description

Thermoregulator DigiTOP TS-1F is designed to regulate and maintain the temperature of electric floor heating by switching on and off heating devices of all types: cable, foil, mat. The temperature sensor (included, cable length – 3 meters) should be placed in a place where the temperature is to be maintained. If necessary, the sensor can be extended up to 100 meters by means of a twisted-pair cable.
For ease of use and safety – the temperature range and hysteresis are limited.

To maintain the desired temperature, the user only needs to set the value. All set values are stored in the non-volatile memory.

Additional Features:
– internal overheating control (with the possibility of temperature indication)
– touch control
– device buttons lock
– brightness adjustment of the indicator
– the ability to turn off the heating

Adjustable temperature range: + 5… + 40 ° C
Mode of operation: Heating
Number of channels: 1
Rated load current: 16A
Maximum load current: 20A
Power supply: AC 230V/50 Hz
Mounting: Ø68mm mounting box
