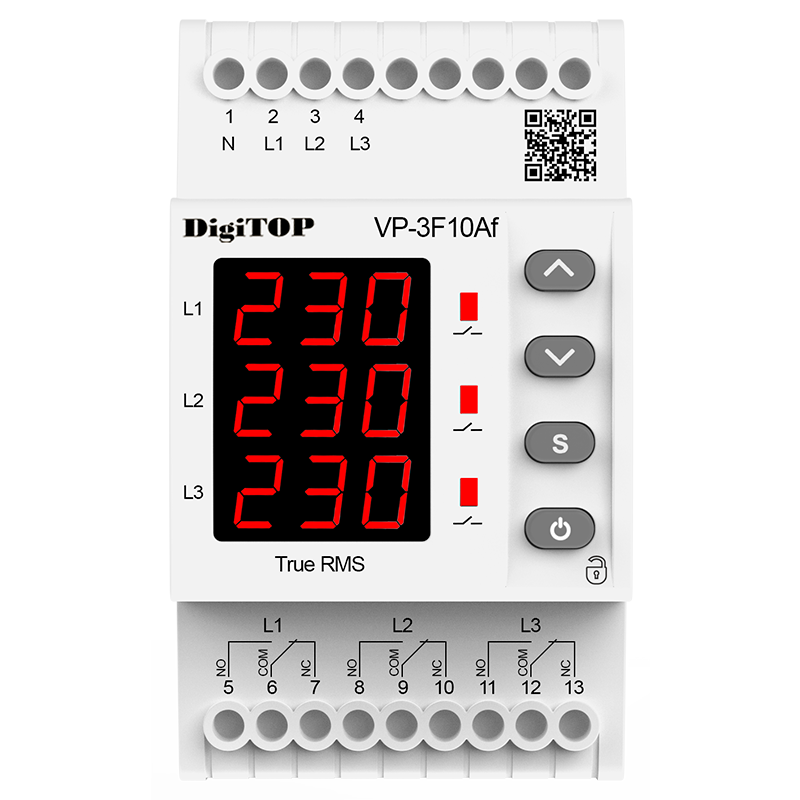

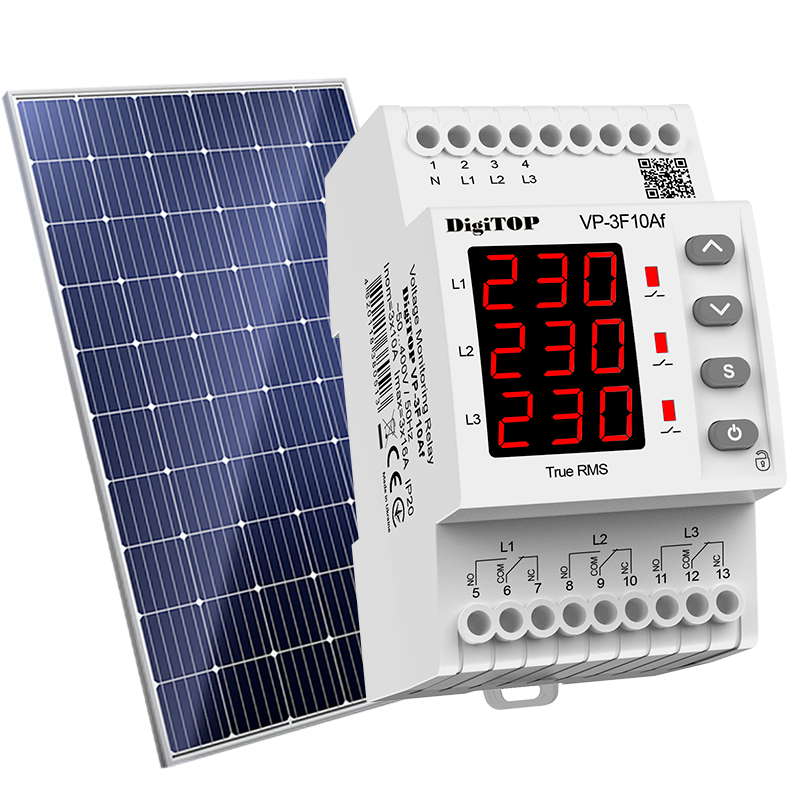

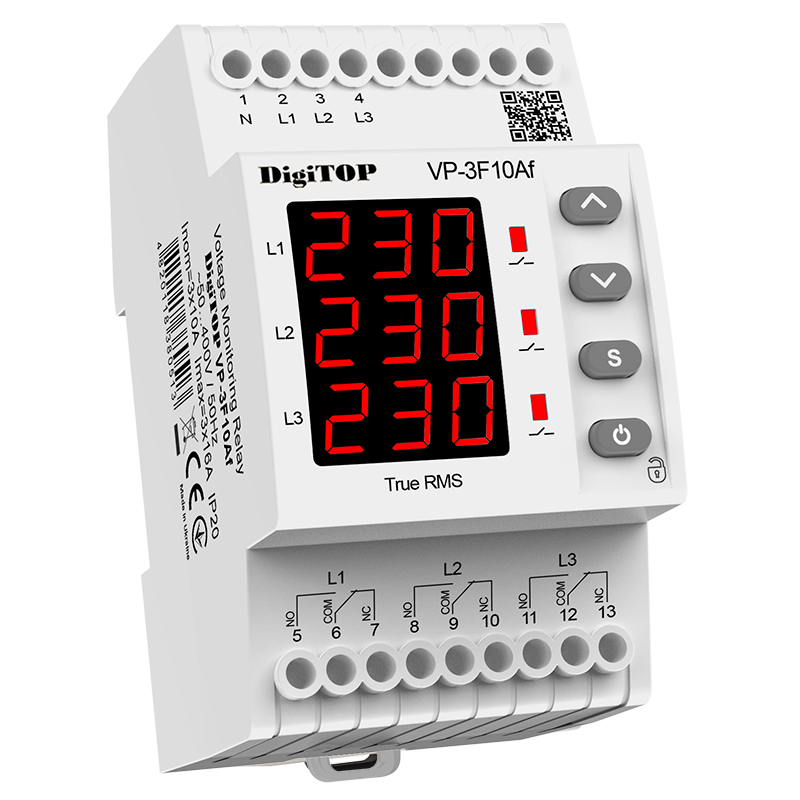

Three-phase voltage relay for photovoltaics DigiTOP VP-3F10Af is designed to protect single-phase or three-phase consumers from excessively high line voltage or to connect an additional consumer in a photovoltaic installation.
€52.03 (€64.00 z VAT)
In stock
Three-phase voltage relay for photovoltaics DigiTOP VP-3F10Af is designed to protect single-phase or three-phase consumers from excessively high line voltage or to connect an additional consumer in a photovoltaic installation. The device prevents breakdowns and extends the life of electrical devices. With a choice of three-phase or three independent single-phase relays.
The relay monitors the upper voltage limit. If this voltage limit is exceeded, the load is switched off (or an additional load can be connected to the power take-off). The load is automatically switched on (off) as soon as the voltage drops to the upper voltage limit minus the voltage drop (hysteresis) after the set response time. I.e. if the upper limit is set to 253 V and the hysteresis is 10 V, then when exceeding 253 V the load will be turned off, and if it drops to 243 V, then after the set response time (from 0 to 10 seconds) the load will be turned on. The relay has three changeover contacts – one for each phase.
Reducing the voltage in a photovoltaic installation is important for safety and efficiency reasons.
Too high a voltage can cause overvoltage and damage to the installation and devices connected to it. Surges can arise when there is a sudden increase in power or decrease in resistance in a circuit. Excessive voltage can also increase the risk of electric shock.
It is important to adapt the voltage of the photovoltaic installation to the requirements of the devices and networks to which it will be connected.
Programmable settings:
– Operating mode – single-phase or three-phase
– Upper shutdown limit , 1V step – 170-270V
– Voltage hysteresis (voltage drop from the upper limit), step 1V – 1-50V
– Power-on response time , 1 sec step – 0-90 sec
Three-phase / three single-phase

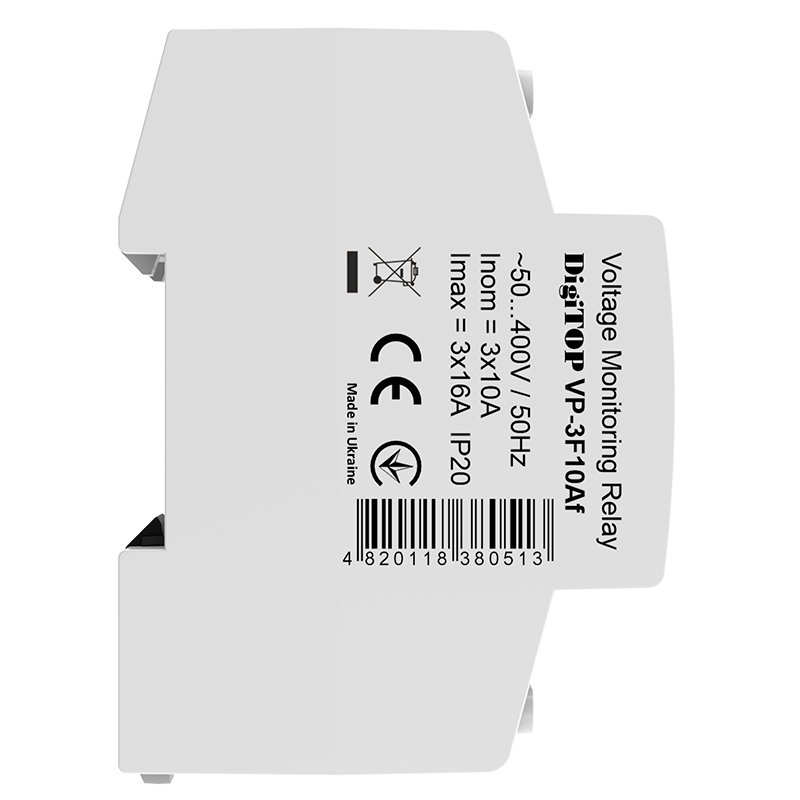

Rated load current: 3x10A
Maximum load current: 3x16A
Operating voltage : 50-400V AC
Network operating frequency: 50Hz
Shutdown time: 0.02 sec.

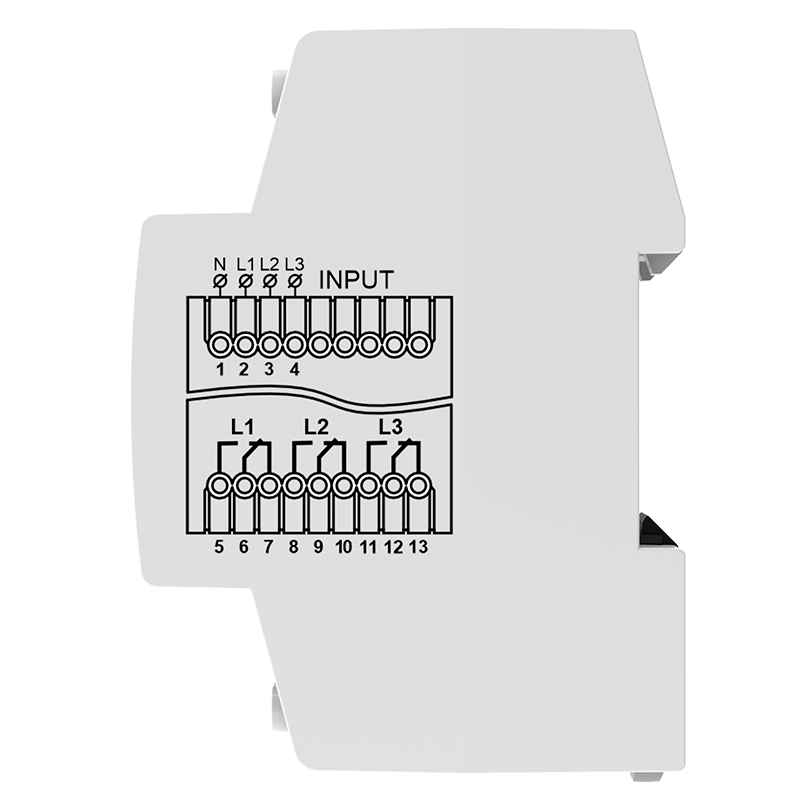

Contact configuration: 3x changeover contact (NO+NC)
Size: 3 modules on DIN rail
| Weight | 67 g |
|---|---|
| Dimensions | 23 mm |
Three-phase / three single-phase
Rated load current: 10A
Maximum load current: 16A
Operating voltage: 50-400V
Switch-off time for the upper limit: 0.02 sec.
Upper cut-off voltage limit: 170-270V (1V step)
Voltage hysteresis: 1-50V (1V step)
Connection delay time: 0-90 sec (1 sec step)
Contact configuration: changeover contact (NO+NC)
Size: 3 modules
Mounting on a DIN rail
5-year warranty
