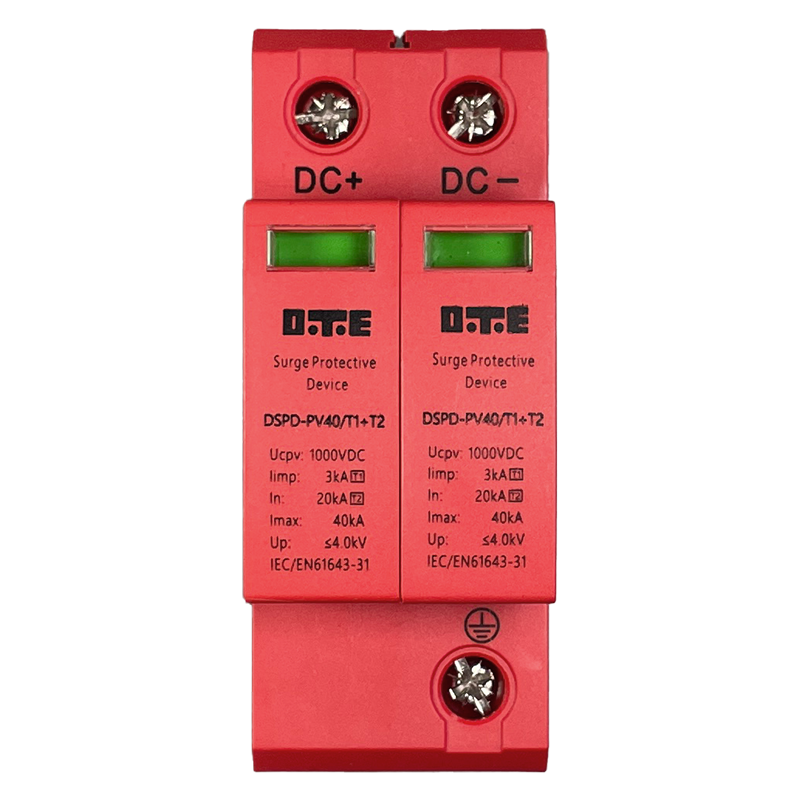

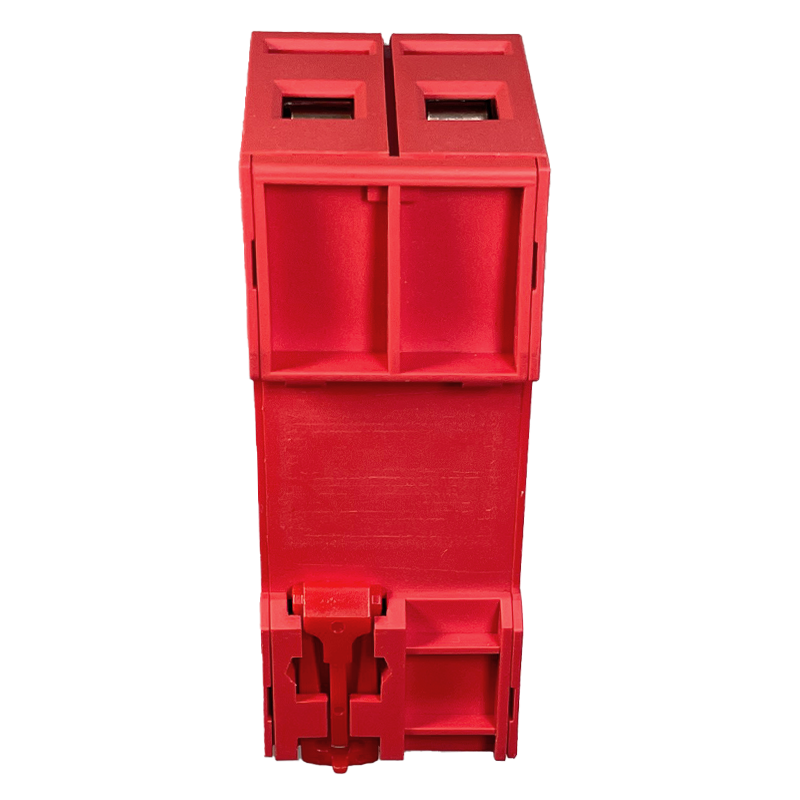

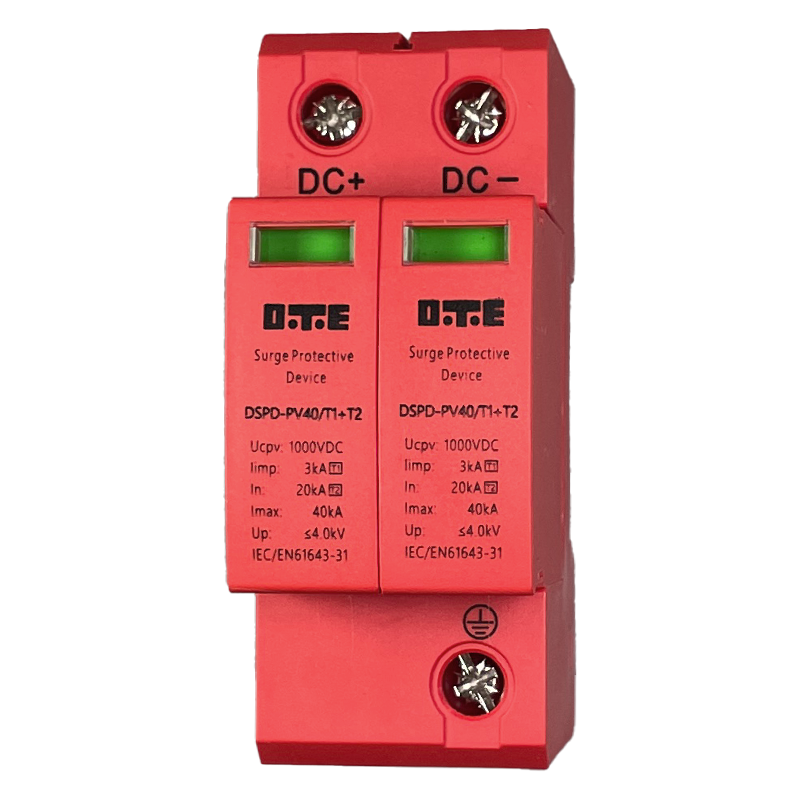

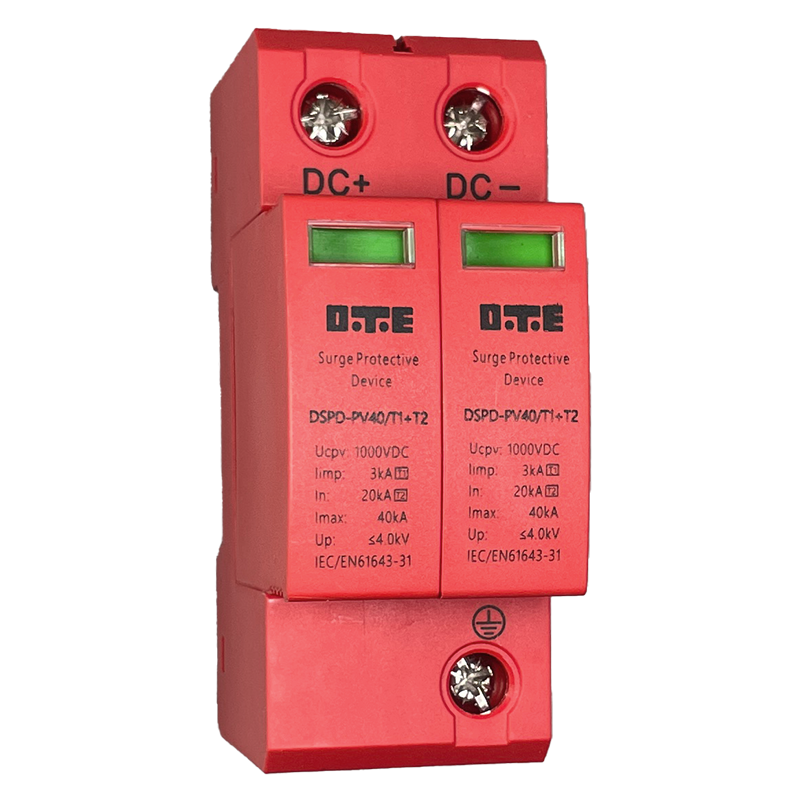

DC surge protector 1000V 40kA T1+T2 DTE DSPD-DC1000-40 2P
The DSPD-DC1000-40 2P surge arrester class T1+T2 (B+C) is used to protect photovoltaic installations against induced voltages, switching voltages and voltages caused by atmospheric factors.
The DSPD-DC1000-40 2P surge arrester class T1+T2 (B+C) is used to protect photovoltaic installations against induced voltages, switching voltages and voltages caused by atmospheric factors.
They are equipped with a visual operation indicator (green – protection, red – no protection).
The APV arrester is constructed using a special high-flow varistor and a gas spark gap.
The limiters have features that make them easier to install and operate.
TECHNICAL DATA:
Nominal DC voltage [V]: 1000
Follow current extinguishing capacity [kA]: 3
Protection class: Type 1+2
Surge current (10/350) [kA]: 3
Limit discharge current (8/20us)[kA]: 40kA
Rated current (8/20us)[kA]: 20kA
Maximum continuous operating voltage DC [V]: 1000
Protection level [kV]: 4.0
Size: 2 modules
Number of poles: 2
Cross-section of flexible cable with ferrule [mm2]: 35
